Category: Windows

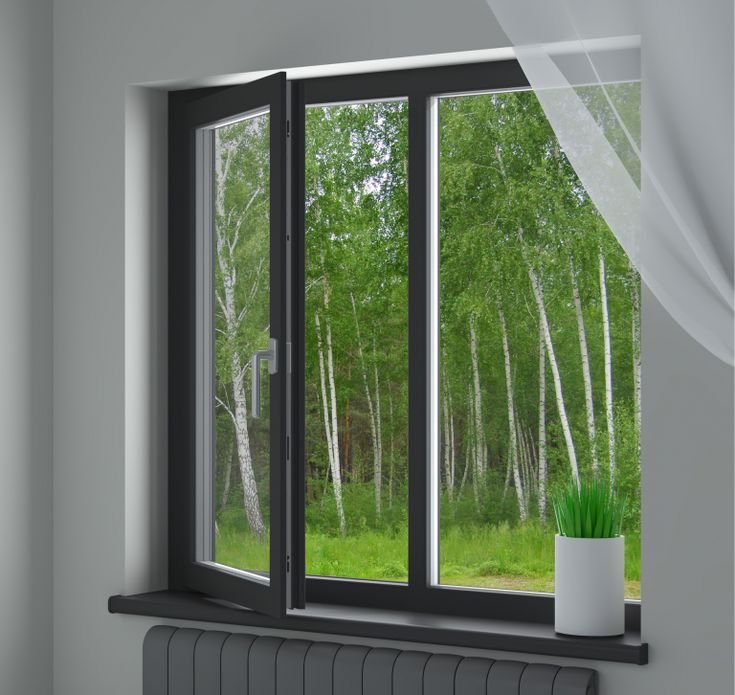

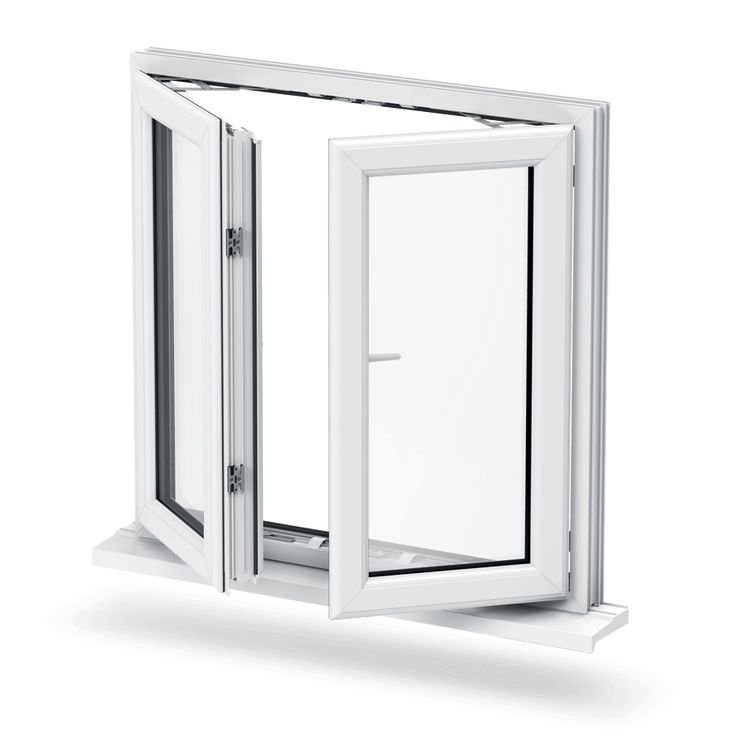

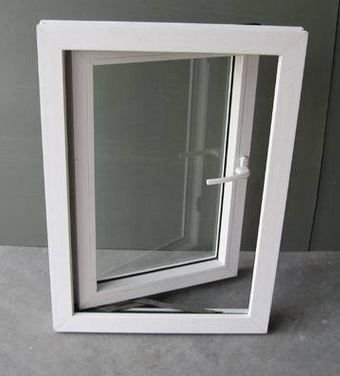

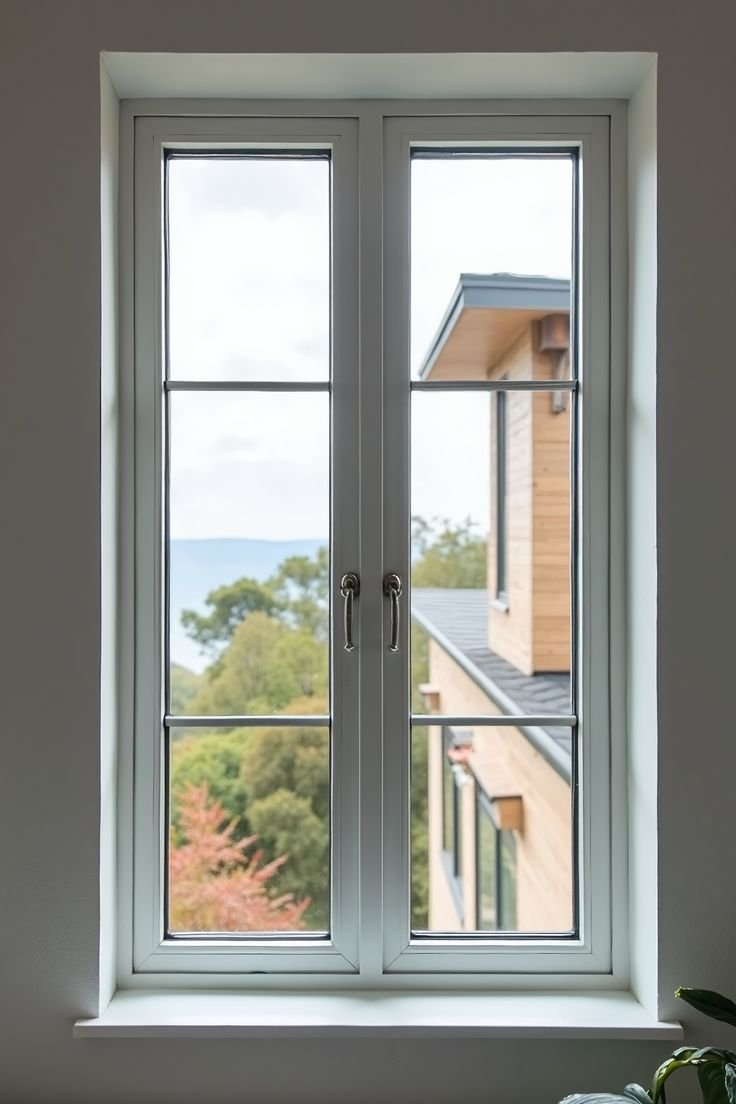

Casement Window

All our casement windows are made using 6063-T5 profile. Aluminium is a very strong and lightweight material. It naturally generates a protective oxide coating, making it virtually resistant to corrosion. Because of that, aluminium is one of the most durable frame materials available. The lifespan of these casement windows can therefore be measured in decades rather than years, making them immensely popular with homeowners.

Color

Sizes

SKU: LMG-WIN-CW-01

Call (844) 410-3337 for exclusive contractor pricing.

Product Description

Brand Name LMNGlass
Open Style Casement
Thermal Insulation U≤ 1.6W/m²K
Acoustic Performance ≤ 45 DB
Air Tightness ≤ 0.4m³/(m²h)
Wind Load Resistance ≥ 2.8 KPa
Water Penetration ≥ 900Pa
Window Standard NFRC, CSA, CE
Glass Standard IGCC / SGCC / CE
Warranty 10 Years
Application Residential, Commercial
Performance Thermal Broken, Soundproof
Main Market USA, CA, EUR.

Frame Color & Finish Options

Our lift & slide doors feature high-performance powder-coat finishes (AAMA 2605 compliant) for maximum durability and color retention. Choose from our curated palette of modern colors.

Matte Black
Charcoal Grey
Anodized Silver

For a truly unique entrance, explore our extended palette of premium finishes or specify any RAL color for a custom-matched look.

RAL Color Fan Deck

Limitless Possibilities with Custom RAL

For the ultimate in personalization, we can powder coat your door system in any of the 200+ official RAL colors. Contact our design team to discuss your custom color project.

Inquire About Custom Colors

*Important Note: Online color swatches are only digital reproductions. Please consult physical samples for final color selection.

Glass Options

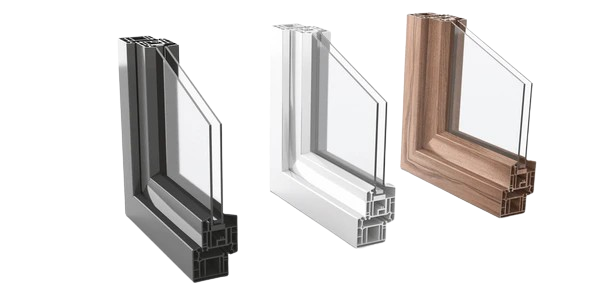

Glass type cross-sections Various glass tints and textures
  • Single Glass(5mm, 6mm, 8mm, 10mm....)
  • Laminated Glass(5mm+0.76pvb+5mm)
  • Double Toughened Glass(5mm+12air+5mm)
  • Toughened Laminated Glass(5mm+12air+0.76pvb+5mm)
  • Triple Toughened Glass(5mm+12air+5mm+12air+5mm)
  • Thickness of single glass: 5-20mm
  • Glass types: Frosted glass, Toughened glass, Low-e coated glass
  • Special performance glass: Fireproof glass, Bulletproof glass
  • Select from various types of glass, including but not limited to: tinted, low-e, sound-proof and burglarproof.

Glass Texture

V-Groove

Obscure

Reeded

Narrow Reeded

Aquatex

Florex

Flemish

Glue Chip

Casci

Rain

Hamered

Renova

Grille Options

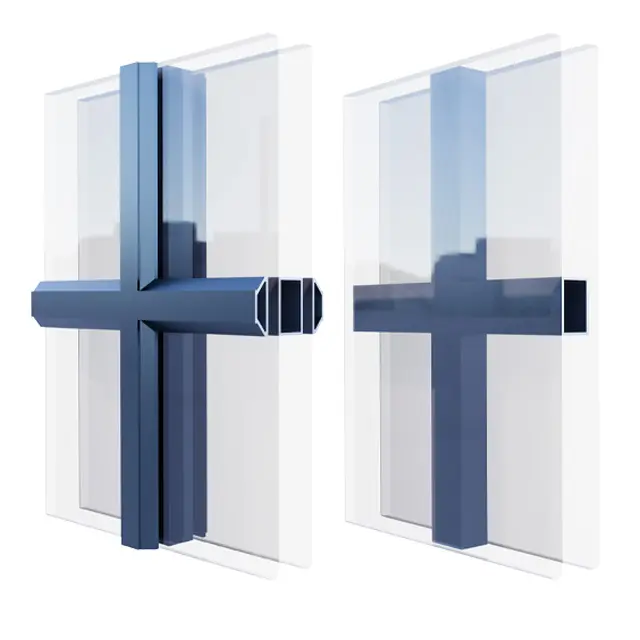

Diagram of Full Divided Light grilles.

Full Divided Light (SDL)

For an authentic, traditional look, grilles are permanently bonded to both the interior and exterior surfaces of the glass.

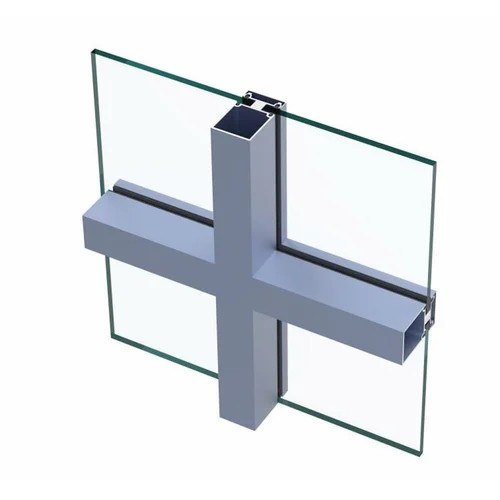

Diagram of grilles sealed between two panes of glass.

Grilles-Between-the-Glass

For effortless cleaning, grilles are sealed inside the insulated glass unit, leaving both glass surfaces completely smooth.

Screen Options

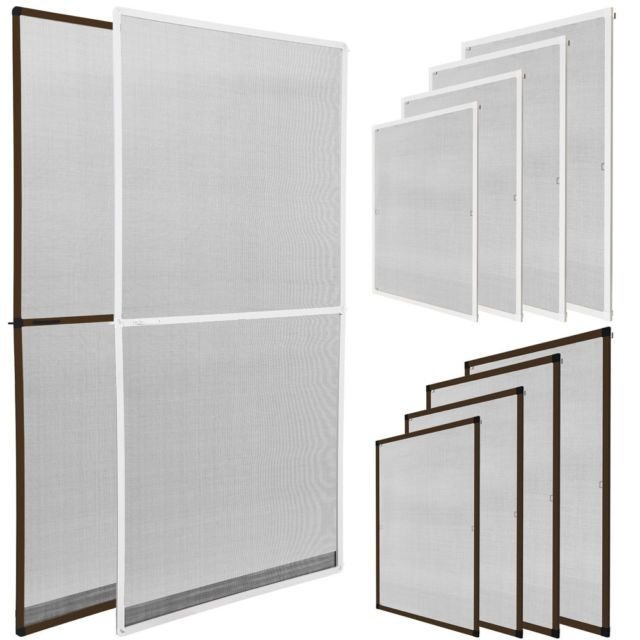

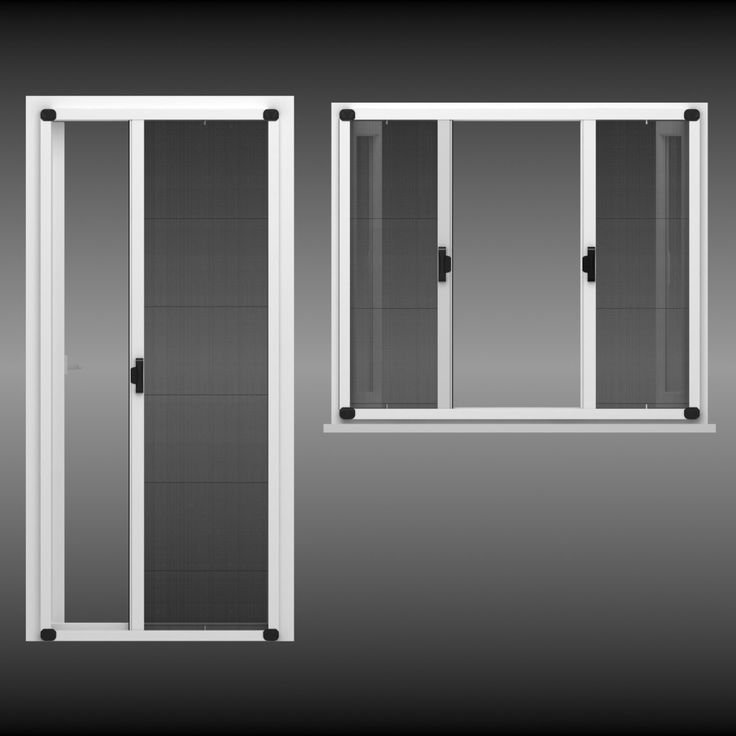

A collection of screen frames in various colors.

Standard & Fixed Screens

A simple and effective solution for enjoying the breeze, built to last and designed to match.

A pleated, retractable screen system.

Retractable & Rolling Screens

For the ultimate in flexibility, our retractable screens disappear when not in use, preserving your unobstructed views.

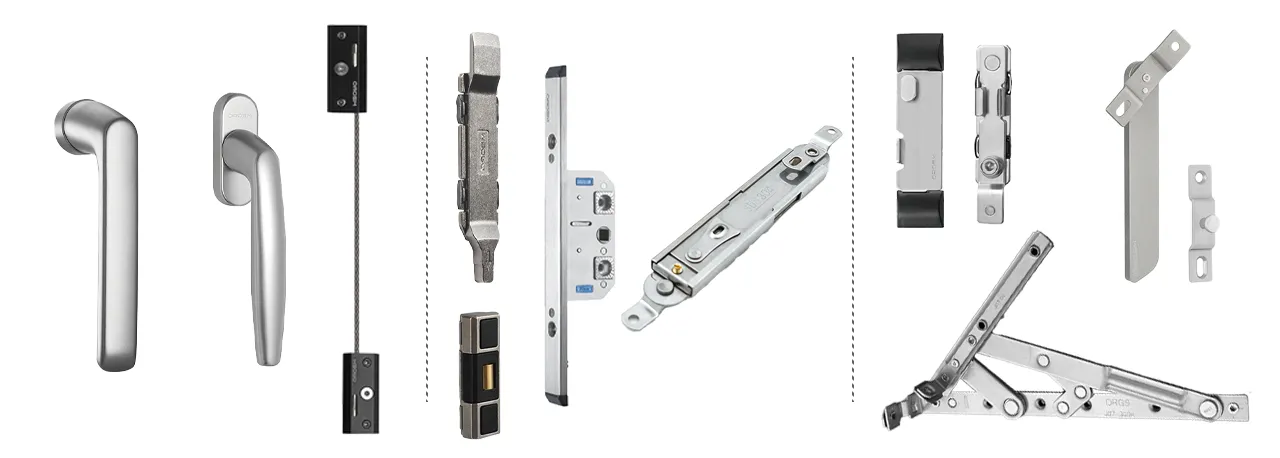

Hardware

An assortment of high-end door handles.

High-end Accessories Options

  • Australia Doric hardware
  • America CMECH hardware
  • German Hoppe hardware
  • China top SMOO Hardware
  • German SIEGENIA hardware
  • China top KINLONG hardware
  • German ROTO hardware
  • German GEZE hardware
  • LMNGlass always choose seriously hardwares&accessories for customers with 10 years warranty
